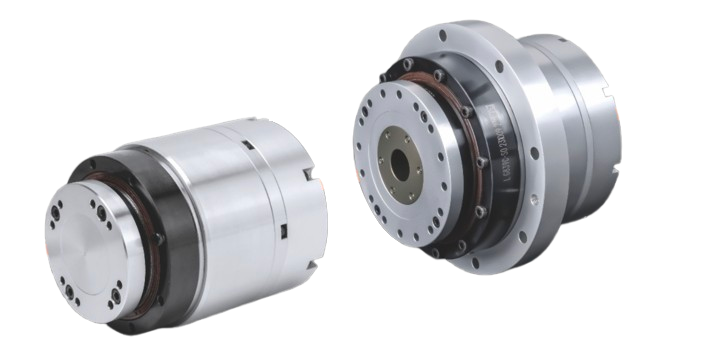

Zero backlash Rotary Actuator
The high-precision series of rotary actuators can be widely used in: electronic and semiconductor equipment, precision CNC machine tools, 3C equipment, precision laser processing equipment, LED equipment, testing equipment, medical equipment, robots and special robotic arms, printing machinery, inkjet equipment, Glass processing equipment, precision measuring instruments and other fields.
High precision series actuator
| Applications: | electronic and semiconductor equipment, precision CNC machine tools, 3C equipment, precision laser processing equipment, LED equipment, testing equipment, medical equipment, robots and special robotic arms, printing machinery, inkjet equipment, glass processing equipment, precision measuring instruments, etc. field. |
| High precision: | The absolute positioning accuracy is as high as within 10 arc seconds (0.0028 degrees); |
| Large torque: | Small size, large torque, output torque up to 800N·m; |
| Hollow structure: | Large-aperture internal threading hole for easy passage of cables, air tubes, laser beams, etc |
| Long life: | The accuracy remains unchanged after more than 20,000 hours of use; |
| Zero backlash: | Harmonic transmission, truly zero backlash; |
| Integrated structure: | Harmonic reducer, torque motor, electromagnetic brake, encoder, driver, etc. integrated |
| Fast response: | Excellent dynamic response performance, ideal for laser processing, 3C automation equipment, etc |
| low vibration: | Low vibration and noise, preferred for applications such as semiconductors, medical imaging equipment, precision instruments, etc |
| High protection: | Up to IP67 protection level |
| maintenance free: | No regular maintenance, no need to change grease, etc. |
| Double Encoder: | Absolute encoder｜Incremental encoder |
