Solid / Hollow Rotary Motor | Passed EU CE certification
Solid/hollow rotary actuators are certified by EU CE. The 220V voltage version of this product can be widely used in precision CNC machine tools, 3C equipment, precision laser processing industries and the 48V version is widely used in robotics, AGV cars, mobile camera gimbals, etc.
Rotary Actuator Passed EU CE certification
| Applications: | The 220V voltage version of this product can be widely used in precision CNC machine tools, 3C equipment, precision laser processing industry, testing equipment, printing equipment Preparation, medical devices, glass polishing equipment, etc.; the 48V version is widely used in robotics, AGV cars, mobile camera gimbals, etc. |

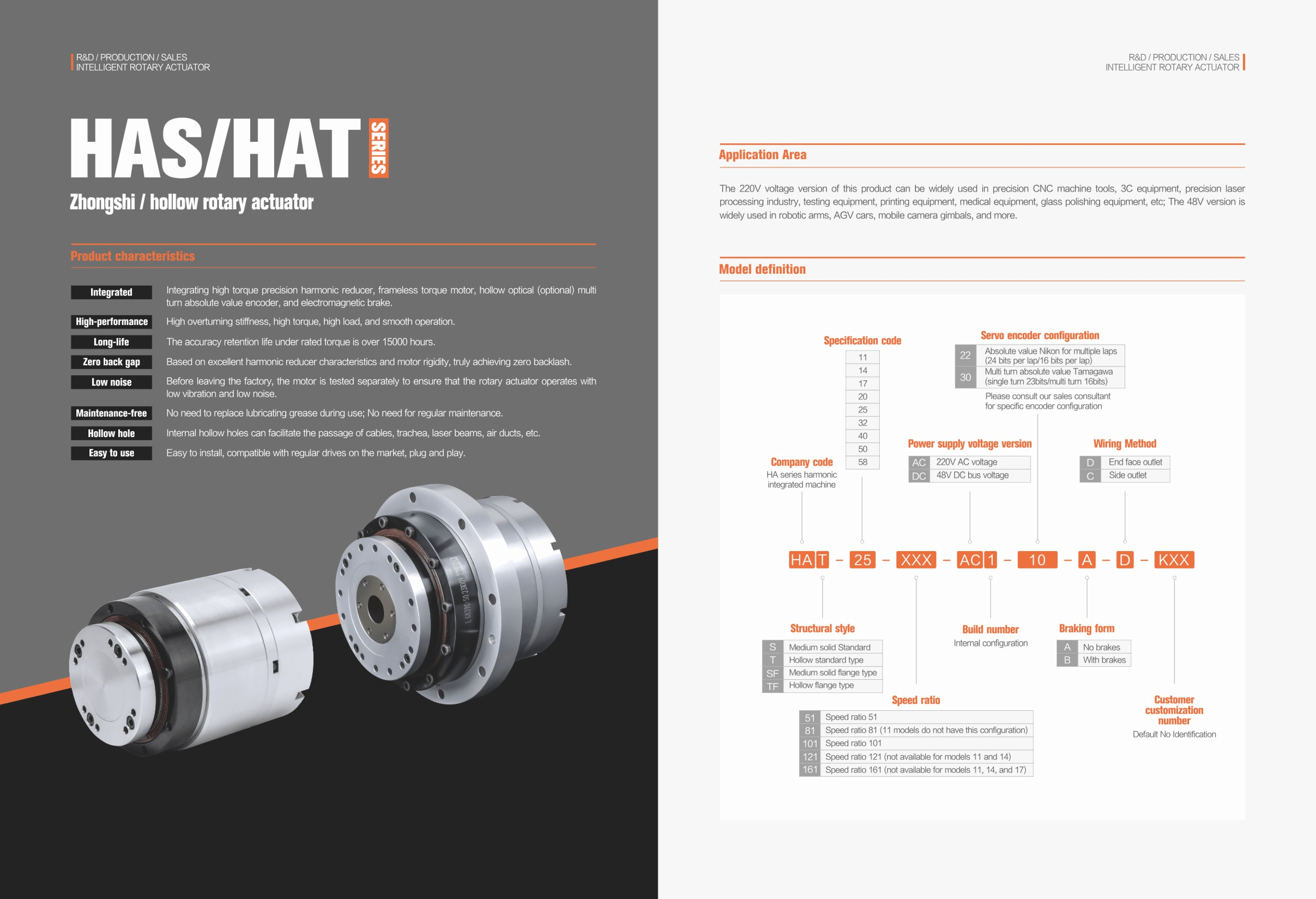

| Integrated: | Integrating high torque precision harmonic reducer, frameless torque motor, hollow optical (optional) multi-turn absolute value encoder, and electromagnetic brake. |
| High-performance: | High overturning stiffness, high torque, high load, and smooth operation. |
| Long-life: | The accuracy retention life under rated torque is over 15000 hours. |
| Zero back gap: | The accuracy remains unchanged after more than 20,000 hours of use; |
| Zero backlash: | Based on excellent harmonic reducer characteristics and motor rigidity, truly achieving zero backlash. |
| Low noise: |
Before leaving the factory, the motor is tested separately to ensure that the rotary actuator operates with low vibration and low noise |
| Maintenance-free: | No regular maintenance, no need to change grease, etc. |
| Hollow hole: | Internal hollow holes can facilitate the passage of cables, trachea, laser beams, air ducts, etc. |
| Easy to use: | Easy to install, compatible with regular drives on the market, plug and play. |
| Protection level: | Standard fully closed self-cooling type (IP65), custom IP67; |
| CE certification: | YES |
