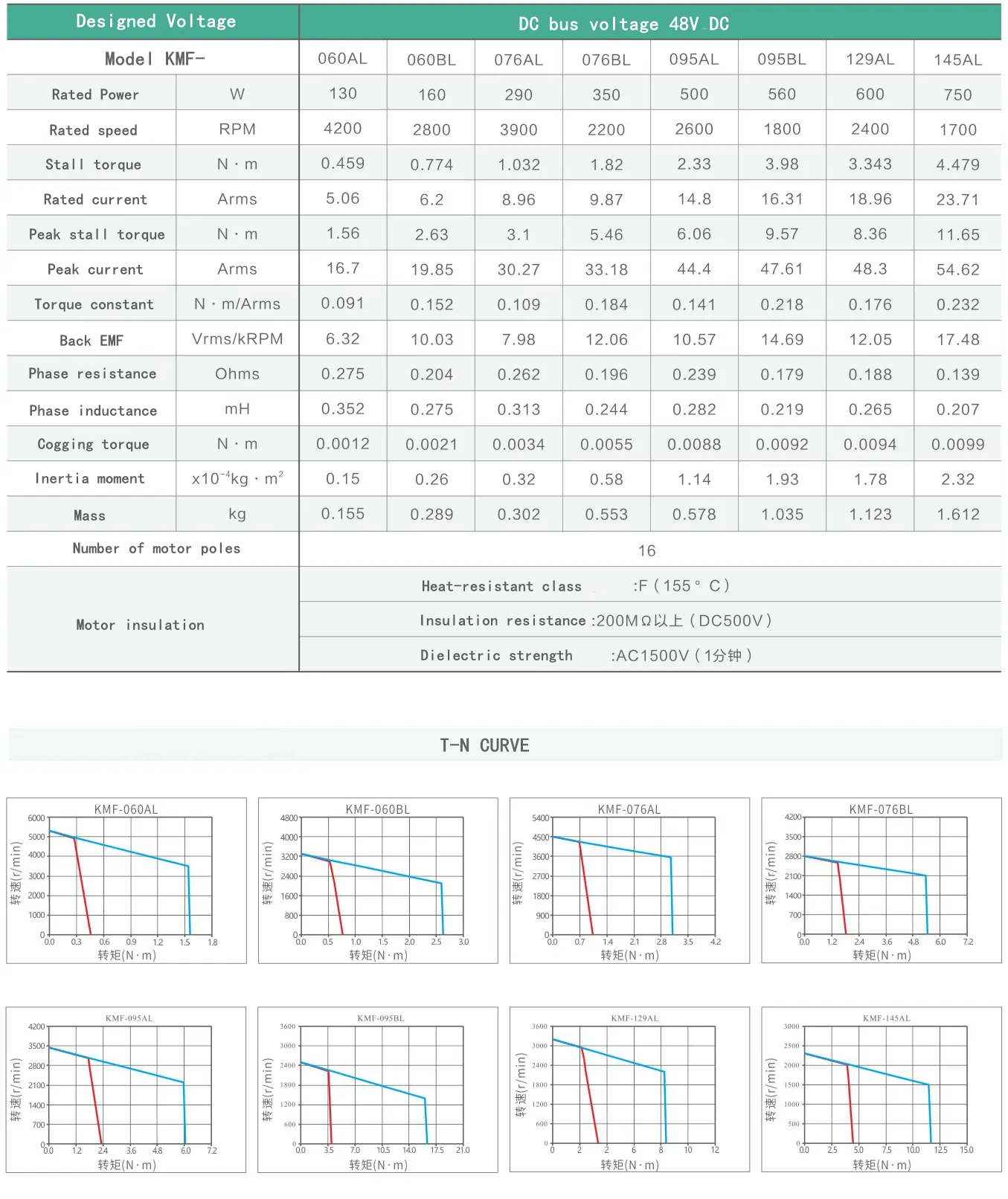

Frameless Torque Motor DC series
The frameless torque motor mainly consists of a stator and windings, a high-performance titanium iron boron rotor, a Hall sensing circuit, etc. It is flexible to use and easy to implement reliable and compact system design.
Motor DC Series
| Applications: | Products are widely used in robots, electronic and semiconductor equipment, 3C equipment, precision PTZ, precision CNC machine tools, precision laser processing equipment, optical testing, logistics equipment, engraving machines, medical equipment, printing machinery, aerospace equipment and other fields. |
| Low cogging torqe: | Extremely low torque ripple at low speed, low noise and smooth operation. |
| High torque density: | Small volume to achieve large torque output |
| Multiple models are available: | covering a variety of frame sizes from 60mm to 145mm |
| Hall Sensor: | Provides feedback signal output |
| High Insulation Class: | Class F Insulation (155°C); |
| Carbon fiber protection: | The carbon fiber sleeve protects the rotor from running at high speeds. |
| Extremely easy to use: | Easy to implement a reliable, compact system design |
| Safety certification: | passed EU CE and North American ETL |
