Frameless Torque Motor AC series
The frameless motor AC series features high torque output and torque density, ultra-low cogging torque, and extremely low torque ripple at low speeds, achieving low noise and precise rotational motion. ·There are various models to choose from, covering a variety of frame sizes from 60mm to 145mm, and they have passed EU CE and North American ETL certification.
Motor AC Series
| Applications: | Products are widely used in robots, electronic and semiconductor equipment, 3C equipment, precision PTZ, precision CNC machine tools, precision laser processing equipment, optical testing, logistics equipment, engraving machines, medical equipment, printing machinery, aerospace equipment and other fields. |
| Low cogging torqe: | Extremely low torque ripple at low speed, low noise and smooth operation. |
| High torque density: | Small volume to achieve large torque output |

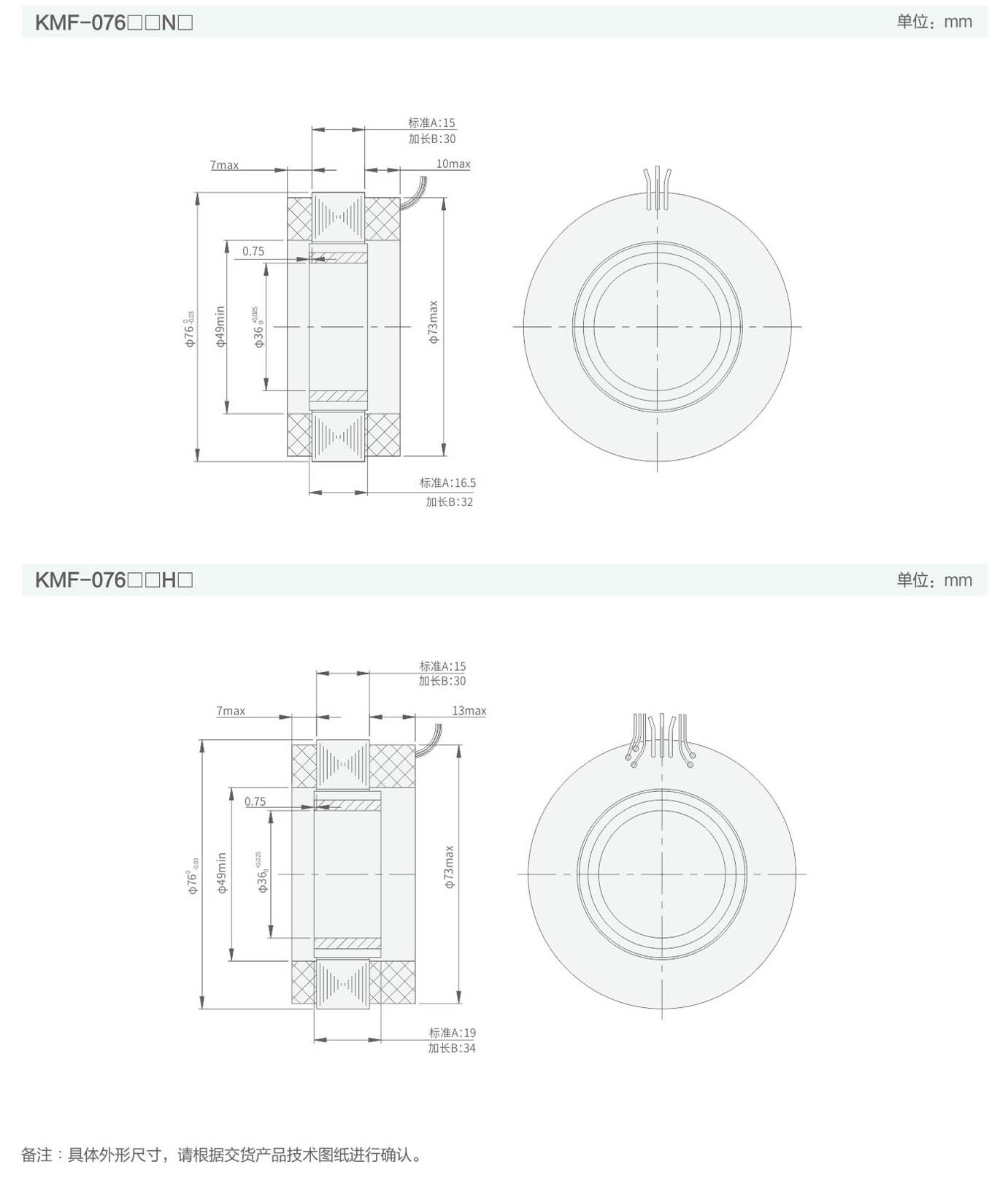

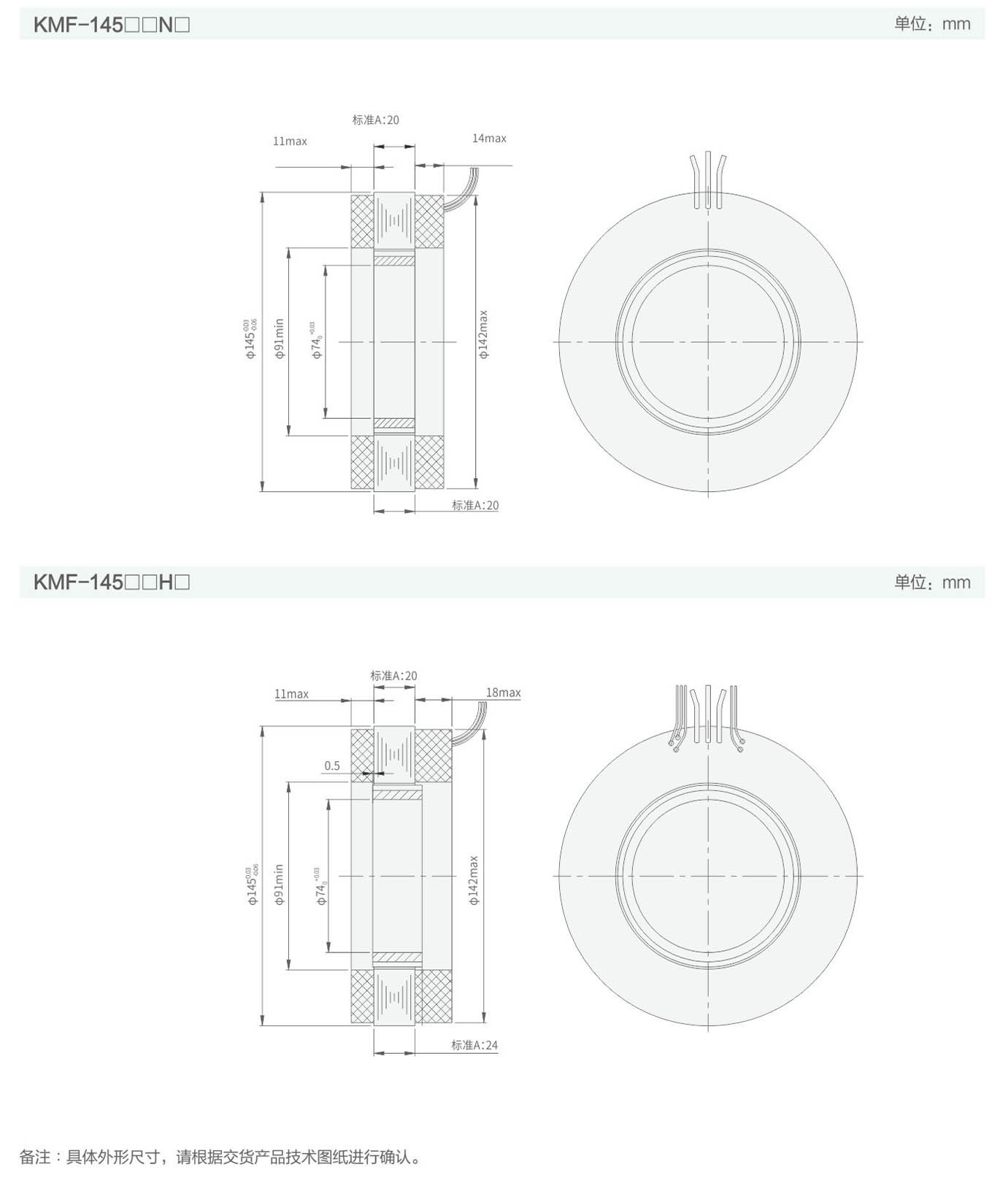

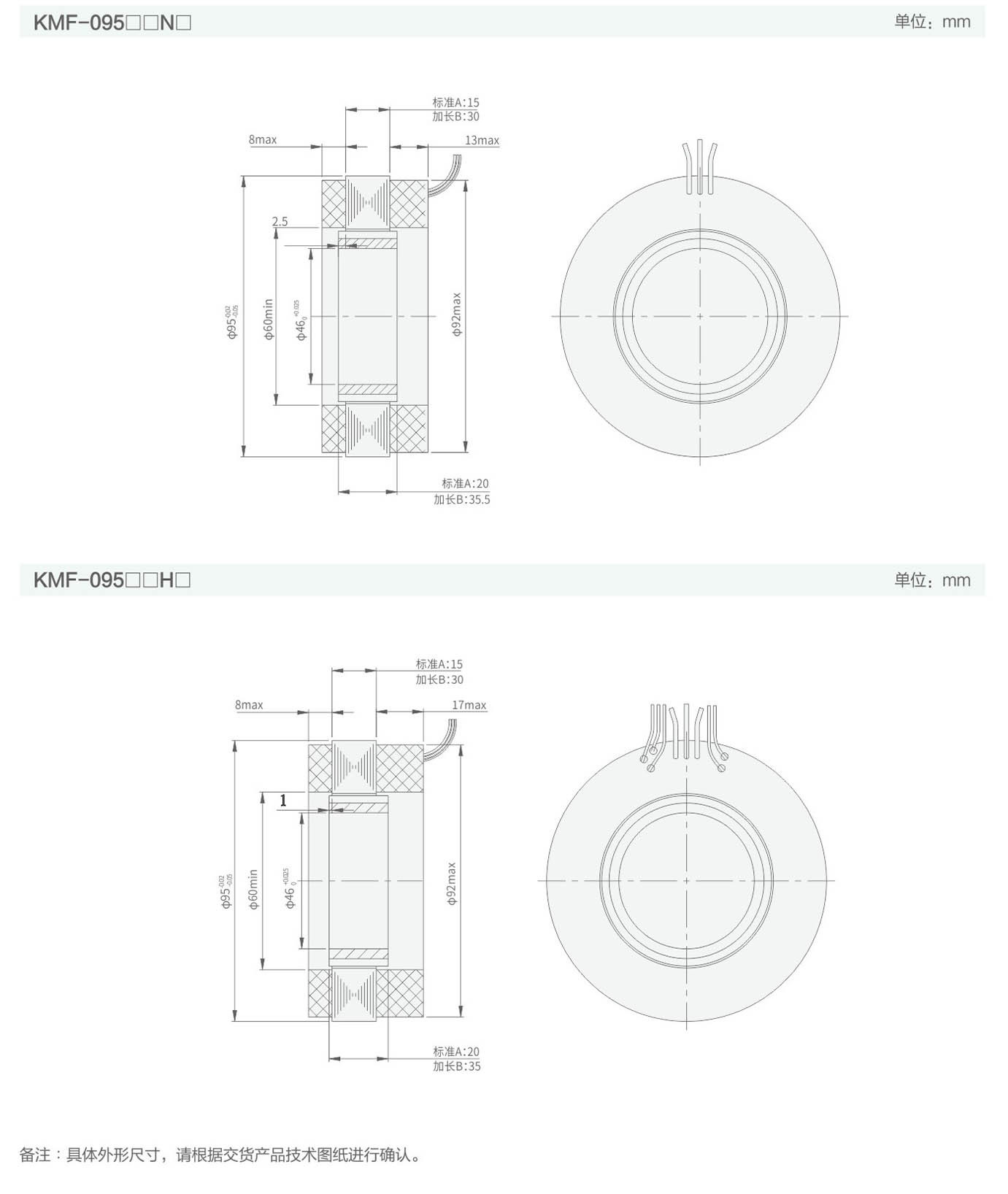

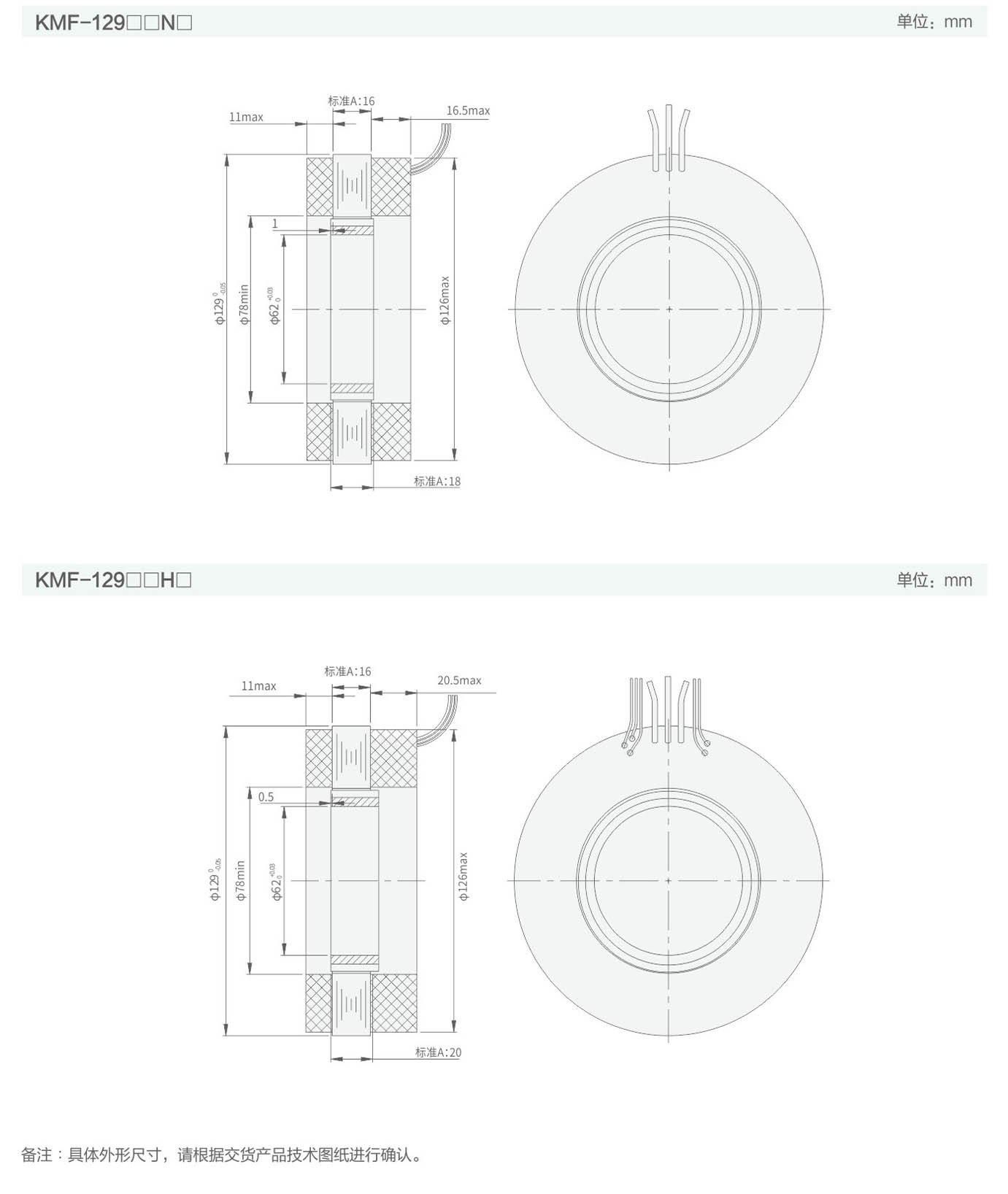

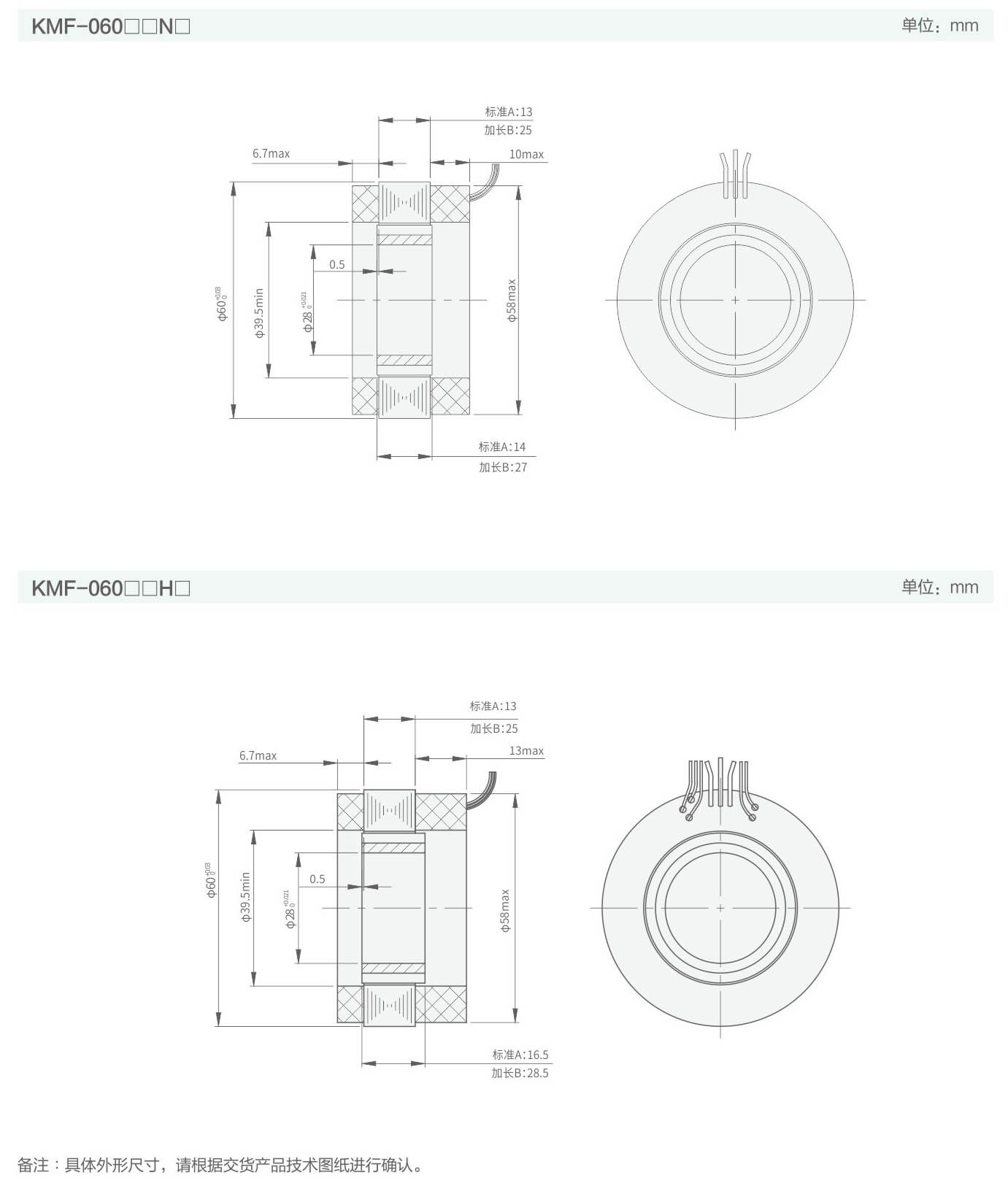

| Multiple models are available: | covering a variety of frame sizes from 60mm to 145mm |
| Hall Sensor: | Provides feedback signal output |
| High Insulation Class: | Class F Insulation (155°C); |
| Carbon fiber protection: | The carbon fiber sleeve protects the rotor from running at high speeds. |
| Extremely easy to use: | Easy to implement a reliable, compact system design |
| Safety certification: | passed EU CE and North American ETL |
