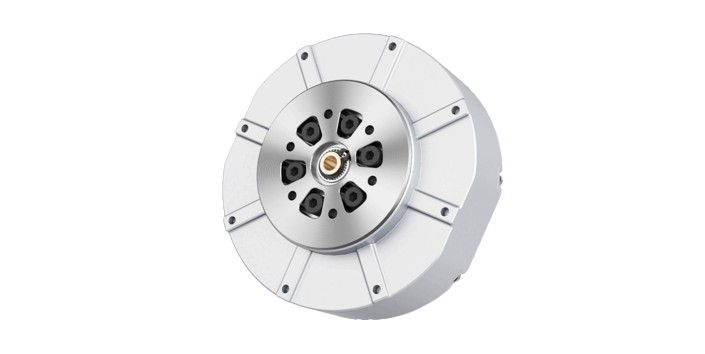

Unitree Actuator Motor
GO-M8010-6 permanent magnet synchronous motors are designed for high-performance robots, providing strong power with high integration. The motor is perfectly matched with the reducer, with a built-in FOC control algorithm, and a built-in temperature and absolute value encoder.It can be widely used in various robot joints and power components.It is an ideal choice for robot competitions, DIY creation, scientific research and education, robot fields, etc.

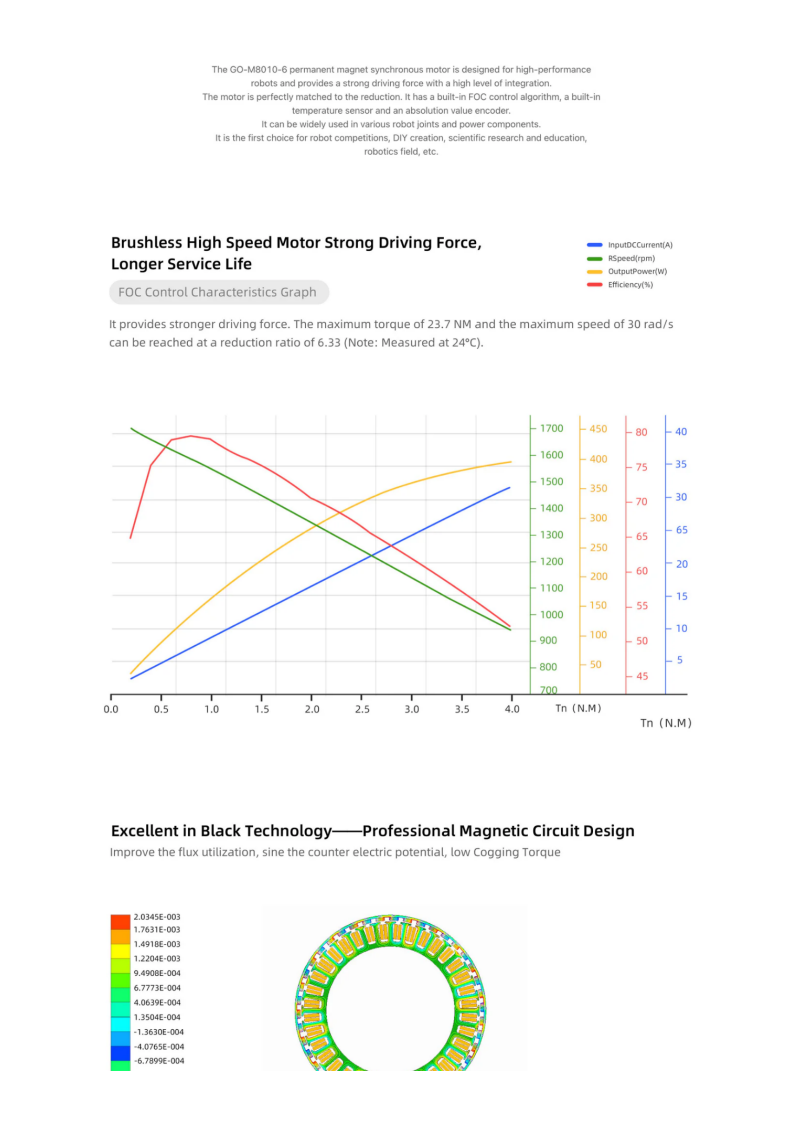

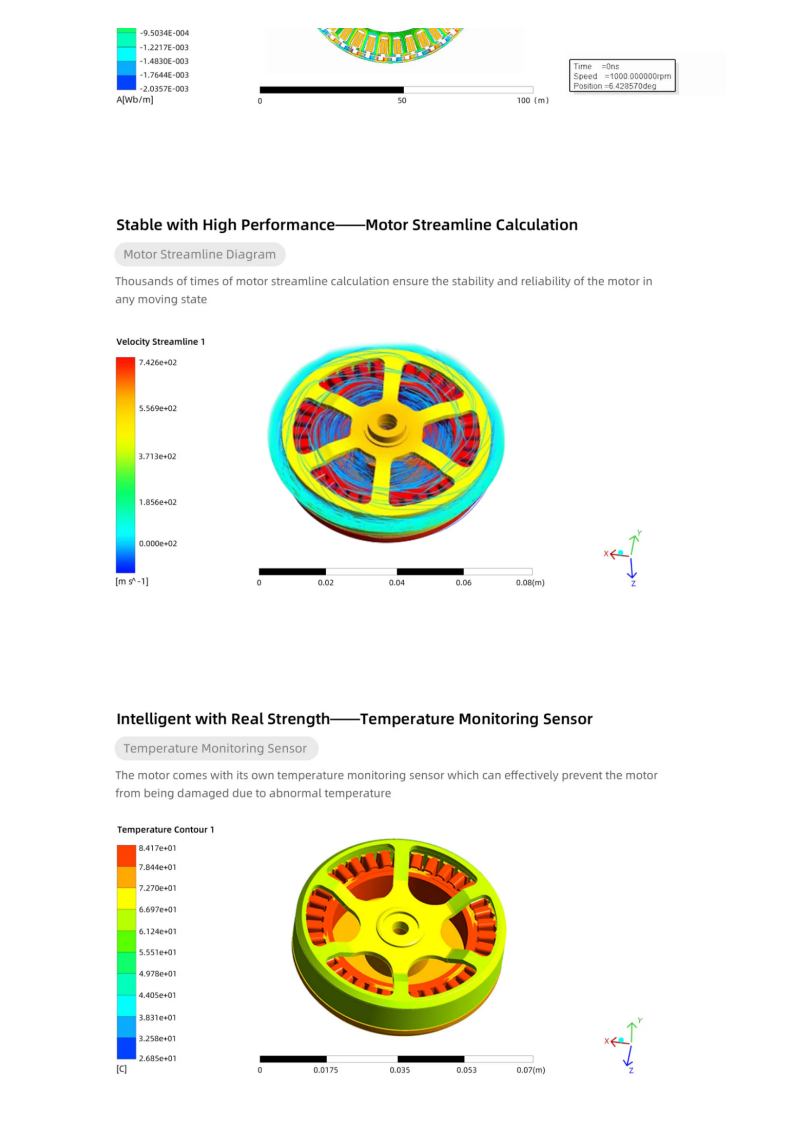

Brushless high-rotation motor, strong power, longer life;Provides stronger power, with a maximum torque of 23.7NM and a maximum speed of 30rad/s at a reduction ratio of 24℃ (Note: measured at 24℃);The motor comes with a temperature detection sensor, which can effectively prevent the motor from being damaged due to abnormal temperature.

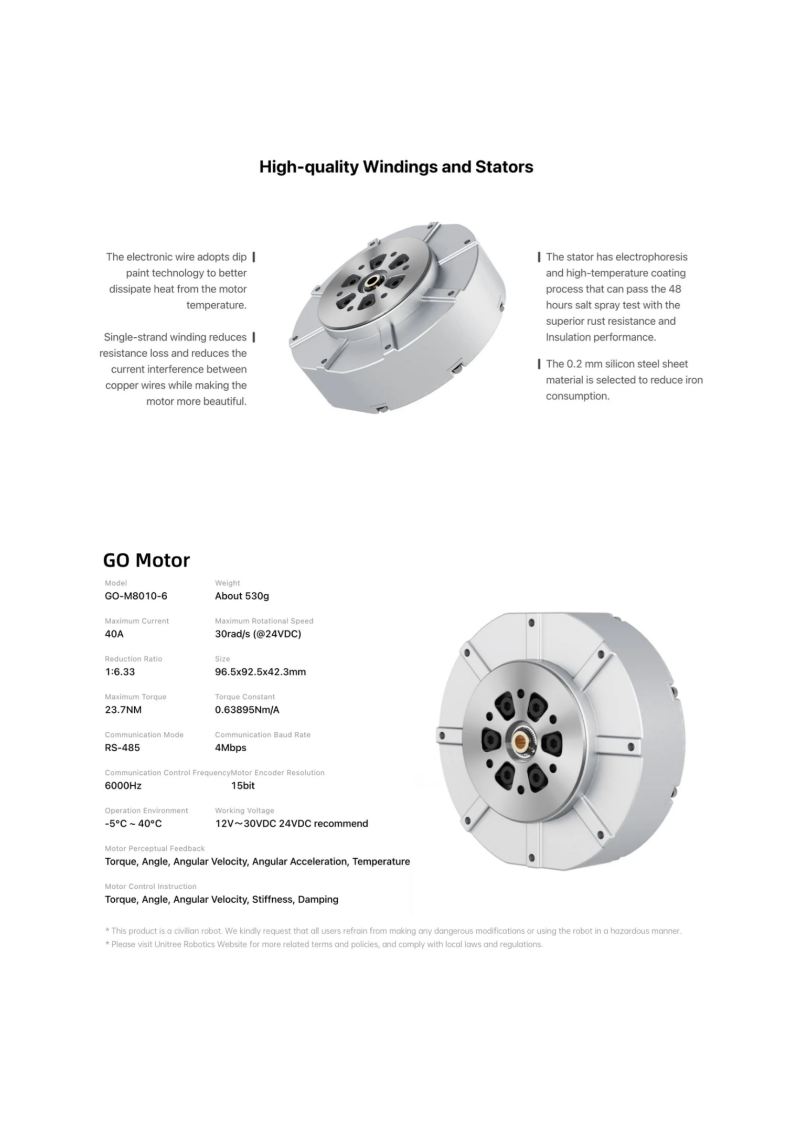

GO-M8010-6 Motor
| Applications: | It can be widely used in various robot joints and power components. It is a robot competition, DIY creation, scientific research and education, robot fields, etc. |
| Reducer ratio: | 1:6.33 |
| Nominal Voltage (V): | 12V~30VDC Recommended 24VDC |
| Maximum speed: | 30rad/s (when 24V power supply) |
| Encoder resolution: | 15bit |
| Torque constant: | 0.63895Nm/A |
| Peak Current (A): | 40 |
| Peak Torque (Nm): | 23.7NM |
| Weight (g): | About 530g |
| Motor Size (mm): | 96.5x92.5x42.3mm |
| Communication protocol: | 485 |
