Robotic Arm Joints

This robot arm joint actuator has dual encoders that can feedback the output position. It weighs only 604 grams and has a peak torque of 60Nm.

We have optimized the robot motor. The optimized motor has a higher torque density and can output greater torque in a small size.moment, while carrying out excellent heat dissipation design

A6408-P2-25

Applications:	Humanoid robot, Quadruped robot, Exoskeleton robot, Rehabilitation robot, Wheeled robot, bipedal Robot, Robotic arm, others
Reducer ratio:	25
Nominal Voltage (V):	48
Nominal Current (A):	8.6
Nominal Power (W):	365.2
Nominal Speed (Rpm):	126
Nominal Torque (Nm):	20
Peak Current (A):	60
Peak Torque (Nm):	60
efficiency:	81%
Weight (g):	604
Backlash (arcmin):	20
Motor Size (mm):	88×59.5
Communication protocol:	CAN
Double Encoder:	Yes

Get in touch with us

Name: *

Email: *

Phone: *

Company:

Message: *

I have read the privacy policy and accept it. By submitting the contact form, I agree to the transfer of my data to arcsecond . The company is allowed to contact me. *

These products could also be interesting for you

Robot Joint Actuator

Rated Voltage:: 48 V
Peak Torque:: 150 Nm
Motor Size:: 124×85 mm

A10020-P1-12

Planetary Drive Actuator series

Rated Voltage:: 24 V
Peak Torque:: 18 Nm
Motor Size:: 32X33.4～52X82 mm

Planetary Joint Module

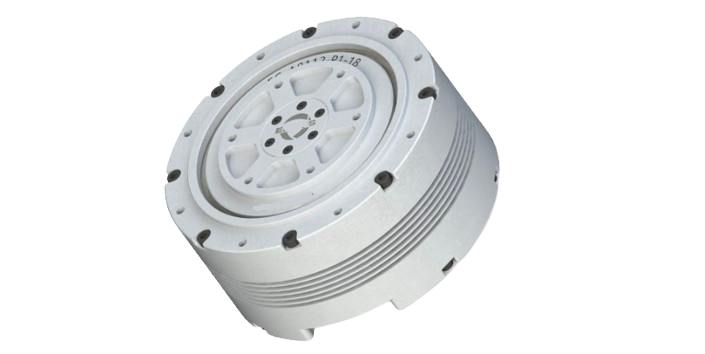

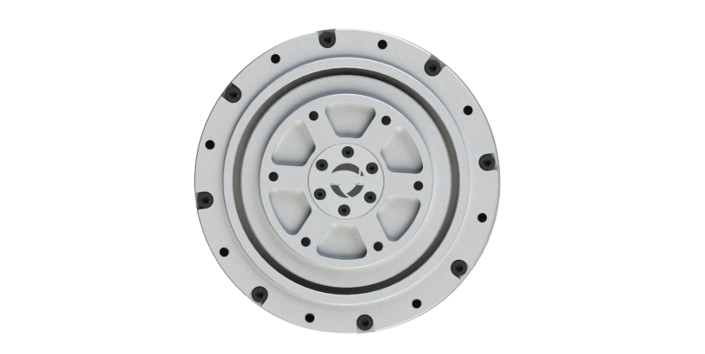

Robot joint Motor
